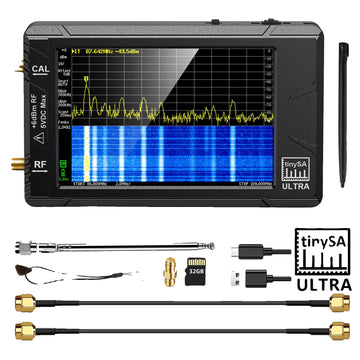

Spectrum Analyzer, 28/4 inch Display, 100kHz to 5.3GHz Range
Op voorraad, klaar om te verzenden!
Regular price
€382,58
Sale price
€382,58
Regular price
Old price:
Save
Unit price
Tax included.
-
Receive between Dec 26 - Dec 30
-
90 day free returns
Spectrum Analyzer, 28/4 inch Display, 100kHz to 5.3GHz Range
Additional information
Product Description
- User-Friendly Interface: The8/4-inch display provides a clear resolution of 320*240 pixels, with resistive touch control and jog switch for easy operation. It also includes USB serial port control and optional TTL USART port for flexible connectivity.
- Dual Input/Output Modes: This device offers low and high input modes with different frequency ranges, input impedance, and power levels to suit various signal analysis needs. It also includes low output and high output modes for signal generation capabilities.
- Versatile Functions: The TinySA ULTRA offers a wide range of functions, including sinus output with harmonics below -40dB, AM/FM modulation, square wave output, and a reference generator with selectable frequency options. It is a comprehensive tool for spectrum analysis and signal generation tasks.
Specifications:
- Display Size: 2.8-inch or 4-inch
- Memory Card: 32GB internal or external
- Display Resolution: 320x240 pixels
- Touch Control: Resistive touch control
- Input Frequency Range: 100kHz to 350MHz or 240MHz to 960MHz
- Input Impedance: 50 ohm
- Input Attenuation: 0dB to 31dB in 1 dB steps
- Maximum Input Level: +10dBm or -6dBm
- Power Detector Resolution: 0.5dB
- Frequency Accuracy: Equal to selected resolution bandwidth
- Scanning Speed: Over 1000 points/second
- Battery Charging Time: Max 1 hour
- Battery Life: At least 2 hours
